Dantherm CDP 135 - Dehumidifiers - Dantherm Group

Code dantherm-cdp-135

Key specifications

Campo di lavoro umidita% RH
Consumo energetico specifico seckWh/l
Perdita di pressione esterna maxPa
Campo di lavoro temperatura aria15-38 °C
Flusso daria nominale2.500 m³/h
Capacita di deumidificazione 30c60 rh155 l/24h

See all 14 specifications

Main features

Dantherm Group product in the Dehumidifiers category
Professional construction for intensive use
Quality materials and components
Guaranteed by the manufacturer according to specifications

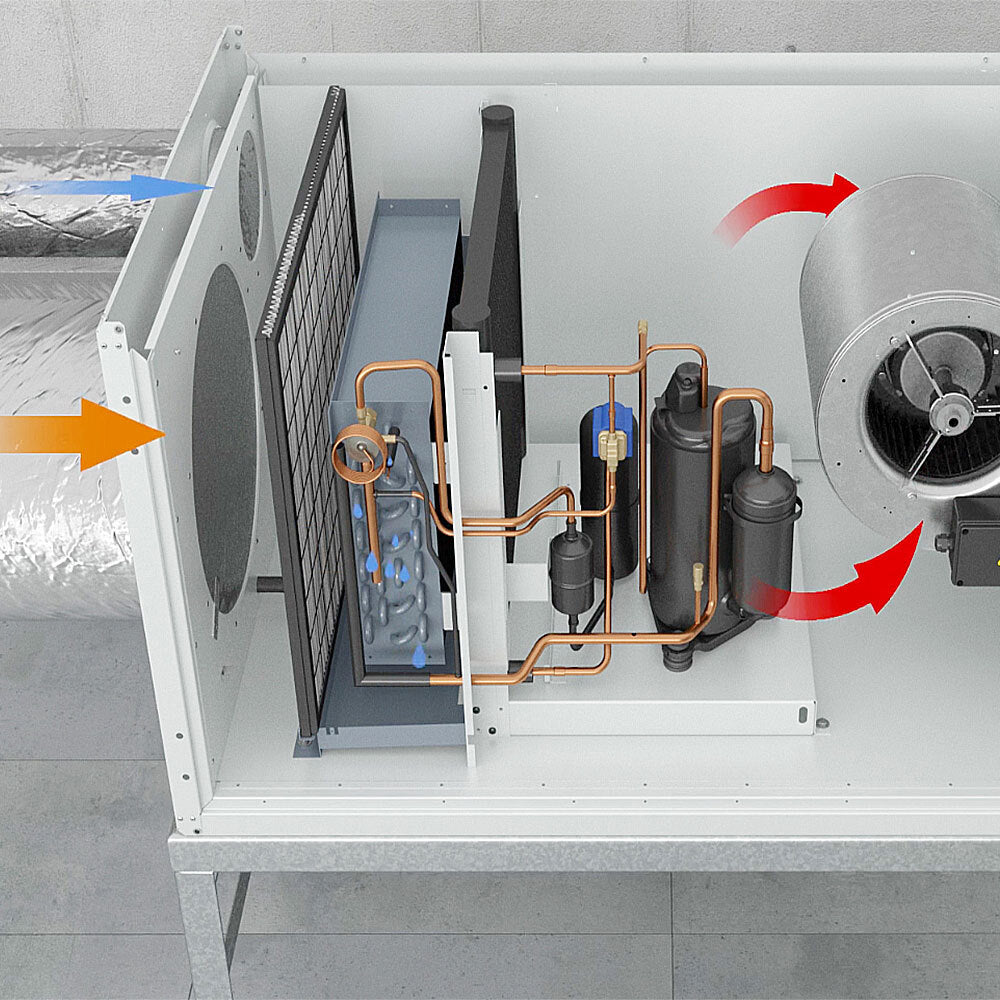

Dantherm CDP 135 is a professional Dantherm product (Dantherm Group) in the Pool Dehumidifiers category. The CDP 135 ducted condensing dehumidifiers are specifically designed for dehumidifying hotels, private premises and therapeutic pools. They offer excellent moisture removal per kWh, high durability and efficient self-regulation. They are ideal for installation in an adjacent technical room. All metal parts and internal surfaces are powder coated before assembly, and the evaporator and condenser coils are made of aluminum with an epoxy coating. Corrosion protection complies with EN/ISO 12944-2, class C4. The range features the Dantherm controller.

Technical specifications

Feature	Value
Operating range – air temperature	°C
Operating range – humidity	% RH
Air flow, nominal	m³/h
Air flow rate	m³/h
Dehumidification capacity @ 30°C/60% RH	l/24h
Dehumidification capacity @ 20°C/60% RH	l/24h
Specific Energy Consumption (SEC)	kWh/l
Max. external pressure loss	Pa
Power supply	V/Hz
Power absorbed, nominal air flow	kW
Current, max.	A
Product dimensions (L x D x H)	mm
Weight (without water condenser)	kg

Advantages

Professional quality: European design and manufacturing, selected materials and components
Efficiency and reliability: consistent performance in the most demanding applications
Safety: dedicated safety features and devices
Versatility: fixed and portable solutions for every application need

Applications

industry, factories, warehouses and logistics
construction, building sites and new constructions
temporary structures, tents, events and rental
commercial and residential buildings
agriculture, swimming pools and specialized environments
emergency services, military and damage restoration

Why choose it

Dantherm Group has been a European leader in climate control since 1954, with brands such as Dantherm, Master, Trotec, Heylo and others. It designs, manufactures and supplies professional solutions for heating, cooling, dehumidification, ventilation, purification and air treatment, both fixed and portable. The products combine robustness, efficiency and safety, with dedicated technical advice.

Standards and safety

professional equipment designed and manufactured in Europe, equipped with the required safety devices; available in fixed and portable versions.

Request a quote from AMES Srl for Dantherm CDP 135: our team will contact you with availability, technical specifications and supply conditions.

Quantity

Products may not be in stock.
Delivery times depend on the manufacturer's speed.

Specifications 14

Campo di lavoro umidita	% RH
Consumo energetico specifico sec	kWh/l
Perdita di pressione esterna max	Pa
Campo di lavoro temperatura aria	15-38 °C
Flusso daria nominale	2.500 m³/h
Capacita di deumidificazione 30c60 rh	155 l/24h
Capacita di deumidificazione 20c60 rh	75 l/24h
R454c caricaco2 equivalente	1,5/0,22 kg/t
Potenza assorbita flusso daria nominale	3,3 kW
Corrente max	16,1/ 5,7 A
20c60	1.9 kW
30c60	2.8 kW
Massimo	3.3 kW
Colore	RAL 9016
