Wortex LWG 3 - Surface Mounted Pumps

Code lwg-3

Key specifications

Aspirazione mandata suction delivery80 (3”)
Giri min r p m3600
Portata max delivery max l 1900
Prevalenza max head max m21
Altezza aspirazione suction depth m7
Potenza motore motor power hp6,5

See all 10 specifications

Benefits

Wortex Reliability: recognized brand in the surface electric pump sector
Consistent performance: tested for professional use
Compatibility: integrable with the Wortex line
AMES Support: pre and post-sales technical consultation

Applications

The Wortex LWG 3 - Surface Electric Pump is intended for professional use in the following contexts:

Construction sites, infrastructure and plants
Workshops, laboratories and industrial production
Specialized technical maintenance
Operators and professionals in the Surface Electric Pump sector

Standards and Compliance

Reference standards: CE marking according to EU directives applicable to the Surface Electric Pump sector, compliance with current technical and safety regulations, technical documentation provided by the manufacturer Wortex.

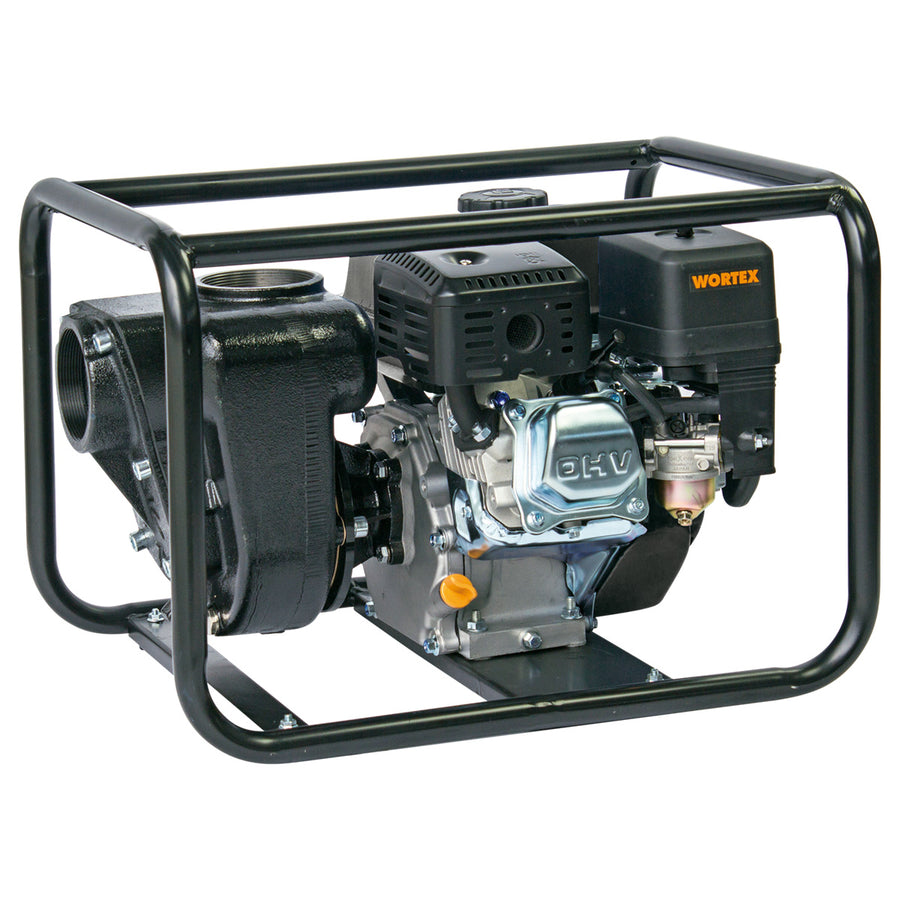

LWG 3 (Wortex — Surface Electric Pumps) — Monoblock self-priming motor pump, open impeller with 4-stroke petrol engine. Impeller and pump body in cast iron. The check valve incorporated in the suction port prevents the siphon effect when stopped and ensures automatic re-priming; at each start-up, the pump re-primes even if only partially filled with liquid and with the suction hose completely empty. Used for draining clean or slightly dirty water, for flood irrigation and for emptying operations. Suction delivery 80 (3”) Revolutions/min / r.p.m. 3600 Max. flow rate / Delivery max. (l/1’) 900 Max. head / Head max. (m) 21 Suction depth (m) 7 Motor power (hp) 6.5 Tank Capacity (lt) 3.6 Start system manual / recoil Dimensions (mm) 550 x 430 x 390 Weight (Kg) 33

Technical Specifications

Feature	Value
Suction delivery	80 (3”)
Revolutions/min / r.p.m.	3600
Max. flow rate / Delivery max. (l/1’)	900
Max. head / Head max. (m)	21
Suction depth (m)	7
Motor power (hp)	6.5
Tank Capacity (lt)	3.6
Start system	manual / recoil
Dimensions (mm)	550 x 430 x 390
Weight (Kg)	33

Features

Via A.Volta, 5/7 Poviglio (RE) 42028 - Italy
" * " indicates mandatory fields

Why choose Wortex

Over 50 years of experience: pumping and pressurization for industry, agriculture and civil use
Complete range: electric pumps, pressure washers, generators, motor compressors and motor wheelbarrows
Reliability and durability: quality materials (stainless steel, cast iron) and high performance
Customized solutions: for residential, civil and industrial needs

Request a quote from AMES Srl for LWG 3: we will contact you with variations, performance, and supply conditions.

Quantity

Products may not be in stock.
Delivery times depend on the manufacturer's speed.

Specifications

Aspirazione mandata suction delivery	80 (3”)
Giri min r p m	3600
Portata max delivery max l 1	900
Prevalenza max head max m	21
Altezza aspirazione suction depth m	7
Potenza motore motor power hp	6,5
Capacita serbatoio tank capacity lt	3,6
Avviamento start system	manuale / recoil
Dimensioni dimensions mm	550 x 430 x 390
Peso weight kg	33
